Fix 407s in C# HttpClient Proxy for Developers with SocketsHttpHandler

Isometric proxy authentication title card

The correct pattern is a WebProxy attached to an HttpClientHandler or a SocketsHttpHandler through its Proxy property, with authentication set through WebProxy.Credentials using NetworkCredential rather than a manually built header. That keeps the .NET networking stack in charge of the CONNECT handshake and the 407 challenge, which it handles more reliably than hand-rolled headers. In production, wrap that handler in IHttpClientFactory or reuse a single HttpClient instance so you're not rebuilding sockets on every request.

TL;DR:

  • Setting proxy credentials on WebProxy.Credentials ensures reliable proxy authentication and prevents most 407 errors, rather than configuring them on HttpClientHandler.Credentials.
  • Use SocketsHttpHandler with PooledConnectionLifetime when rotating proxy IPs or dealing with connection stale issues, especially in high-volume scenarios.
  • Reused HttpClient instances or IHttpClientFactory-managed clients avoid unnecessary re-negotiation of proxy handshakes, improving performance and stability.
  • Confirm the proxy setup with actual tools like curl or packet sniffers to troubleshoot certificate or authentication issues effectively before deploying.
  • Never modify the proxy or credentials on a live handler; build a new handler or client for different proxy identities to prevent connection pooling errors or credential mismatches.

Table of Contents

How Do You Set a Proxy on C# HttpClient?

You attach the proxy at the handler level, never on HttpClient itself. HttpClient doesn't expose a Proxy property; that setting lives on HttpClientHandler.Proxy or SocketsHttpHandler.Proxy, both of which accept an IWebProxy object, usually a WebProxy instance built from a host and port.

Here's the minimal unauthenticated version:

var proxy = new WebProxy("http://proxyserver:8080");
var handler = new HttpClientHandler
{
    Proxy = proxy,
    UseProxy = true
};
var client = new HttpClient(handler);
var response = await client.GetAsync("https://api.example.com/data");

Add credentials for an authenticated proxy by setting them directly on the WebProxy object:

var proxy = new WebProxy("http://proxyserver:8080")
{
    Credentials = new NetworkCredential("username", "password")
};
var handler = new HttpClientHandler { Proxy = proxy, UseProxy = true };
var client = new HttpClient(handler);

That single change (proxy.Credentials, not handler.Credentials, and definitely not a custom Proxy-Authorization header) is where most authentication bugs disappear. WebProxy.Credentials exists specifically to answer the server's 407 challenge, and letting it do that job avoids re-implementing the negotiation handshake yourself.

If you need finer control over connection pooling and DNS refresh, use SocketsHttpHandler instead:

var handler = new SocketsHttpHandler
{
    Proxy = proxy,
    UseProxy = true,
    PooledConnectionLifetime = TimeSpan.FromMinutes(2)
};
var client = new HttpClient(handler);

SocketsHttpHandler is the default transport in modern .NET, and PooledConnectionLifetime matters a lot when you're rotating proxy IPs, since it forces periodic DNS re-resolution instead of pinning a stale connection to an IP that's already been recycled.

For anything running in a hosted app (ASP.NET Core, a worker service, a console app with generic host), skip manual HttpClient construction entirely and register a named client:

services.AddHttpClient("ProxiedClient")
    .ConfigurePrimaryHttpMessageHandler(() => new SocketsHttpHandler
    {
        Proxy = new WebProxy("http://proxyserver:8080")
        {
            Credentials = new NetworkCredential("username", "password")
        },
        UseProxy = true,
        PooledConnectionLifetime = TimeSpan.FromMinutes(2)
    });

A few things worth remembering as you adapt these:

  • UseProxy defaults to true, but set it explicitly so the intent is obvious to anyone reading the code later.
  • HttpClientHandler.Proxy overrides any local machine or app config proxy settings the moment you assign it.
  • Credentials on the proxy object apply only to that proxy, never to the destination server, even over an authenticated tunnel.
  • ConfigurePrimaryHttpMessageHandler runs once per handler lifetime, not per request, so building the WebProxy inline here is safe and cheap.

Why Do You Get a 407 Error With HttpClient Proxy Authentication?

A 407 response means the proxy itself rejected the request for lacking valid credentials. It has nothing to do with the destination server. That distinction trips up more developers than any other part of proxy configuration, because a 407 looks similar to a 401 in your exception handling, but the fix lives in a completely different place.

The single most common cause: credentials get set on HttpClientHandler.Credentials (which authenticates against the destination server) instead of WebProxy.Credentials (which authenticates against the proxy). A widely referenced Stack Overflow thread on HttpClient and 407 errors walks through exactly this mistake, and it's still the first thing to check when a proxy suddenly stops authenticating.

Work through this checklist in order when you hit a 407:

  1. Confirm credentials are set on the WebProxy object, not the handler or an AuthenticationHeaderValue.
  2. Verify the host and port match what your proxy provider issued. A typo here often produces a 407 instead of a connection failure.
  3. Check whether the proxy expects UseDefaultCredentials (current logged-on Windows identity) instead of an explicit NetworkCredential. Setting both at once causes unpredictable behavior.
  4. For HTTPS destinations, confirm the proxy is completing the CONNECT tunnel before your TLS handshake starts. Some corporate proxies require a separate authentication step at the CONNECT stage.
  5. Pull proxy-side logs if you have access. Most managed proxy services log auth failures with a reason code that's far more specific than the bare 407 your client sees.

Pro Tip: Capture raw traffic with a tool like Fiddler or a packet sniffer before assuming your code is wrong. A surprising number of "407 bugs" turn out to be an expired password or IP allowlist entry on the proxy provider's side, not a line of C#.

How Should You Manage HttpClient Lifetime With a Proxy?

Reuse HttpClient instances. Creating and disposing a new one per request is a well-documented performance mistake, and it gets worse with a proxy in the mix, since every new handler means a fresh TCP connection and a fresh proxy authentication handshake. Microsoft's own HttpClient guidance recommends either a long-lived singleton HttpClient or, in DI-based apps, IHttpClientFactory.

SocketsHttpHandler gives you the levers that matter for pooled connections behind a proxy:

  • Proxy sets the IWebProxy instance.
  • UseProxy toggles whether the handler routes through it at all.
  • PooledConnectionLifetime caps how long a pooled connection lives before it's torn down and re-established, which matters if your proxy provider rotates IPs on a schedule.

One rule catches people off guard: you cannot change SocketsHttpHandler.Proxy after the handler has already sent requests. Doing so throws an InvalidOperationException, because the connection pool is already keyed to the original proxy state. If your application needs to route different requests through different proxy identities, the fix isn't to mutate one handler. Build one stable HttpClient per proxy identity instead, or implement a custom IWebProxy that resolves the correct address per request before any traffic starts.

In practice, that means registering a named client per proxy through IHttpClientFactory:

services.AddHttpClient("ProxyUSChicago")
    .ConfigurePrimaryHttpMessageHandler(() => new SocketsHttpHandler
    {
        Proxy = new WebProxy("http://chicago.proxyhost:8080"),
        UseProxy = true
    });

That pattern scales cleanly to dozens of proxy identities without any risk of one request's proxy state leaking into another's, something a shared mutable handler cannot guarantee.

Does HttpClient Respect System and Environment Proxy Settings?

Yes, by default. HttpClient.DefaultProxy reads platform proxy configuration automatically, so if you never set Proxy on your handler, requests may still route through whatever the OS or environment defines. On Unix-based platforms, that means the HttpClient.DefaultProxy property honors HTTP_PROXY, HTTPS_PROXY, ALL_PROXY, and NO_PROXY environment variables. Windows instead reads system proxy settings through WinINet, which is a real behavioral gap to test for if your code deploys to both.

NO_PROXY causes more support tickets than any other proxy setting, mostly because its matching rules are stricter than developers expect:

  • It's a comma-separated list of hostnames, not a single string with wildcards.
  • A leading dot (.internal.example.com) matches subdomains but doesn't reliably match the bare apex domain, so you may need both example.com and .example.com listed.
  • Asterisk wildcards aren't supported at all, even though plenty of proxy tools elsewhere use them.
  • SOCKS proxy support and environment-variable parsing vary across .NET versions and runtimes, so a config that behaves one way on .NET 6 isn't guaranteed to behave identically on .NET 9.

Before shipping, replicate your actual target runtime (container base image, cloud host OS) and confirm NO_PROXY matches both the apex domain and its subdomains, because a mismatch here silently routes internal traffic through an external proxy.

What Security Risks Come With Proxying HTTPS Traffic?

The biggest one is reaching for DangerousAcceptAnyServerCertificateValidator the moment an HTTPS request through a proxy throws a certificate error. It works, and that's exactly the problem: it disables all certificate validation, which opens the door to a man-in-the-middle attack, since your code stops verifying it's actually talking to the server it thinks it is. Microsoft's own documentation names it "dangerous" in the property itself, and that's not an overstatement.

HTTPS certificate validation paths through proxy

The right fix depends on what's actually broken: the proxy's CONNECT tunnel, a missing root certificate in your trust store, or a hostname mismatch between the certificate and the address you're calling. HTTPS through a proxy works by tunneling: the client sends a CONNECT request, the proxy opens a raw TCP tunnel, and the TLS handshake happens directly between your app and the destination server. The proxy never sees decrypted traffic. Fixing the tunnel setup, not disabling validation, resolves nearly every certificate error that shows up in this scenario.

Three fixes for the errors you'll hit most often:

  1. InvalidOperationException on a proxy change mid-run: stop mutating a live handler's Proxy property. Build a new client for that identity instead.
  2. Persistent 407s despite correct-looking credentials: double-check they're on WebProxy.Credentials, not HttpClientHandler.Credentials.
  3. Certificate chain errors through a corporate proxy: import the proxy's root certificate into your trust store rather than bypassing validation entirely.

A quick testing checklist before deployment: confirm the CONNECT tunnel succeeds independently of your app code (a raw curl test through the same proxy works well), verify certificate chains resolve without any validator override, and confirm credentials are scoped to the proxy object only.

When Should You Choose a Managed Mobile Proxy Over Self-Hosting?

Self-hosted or datacenter proxies work fine until your target sees a pattern of predictable data-center IPs, at which point rotation and rate limits become a daily maintenance job. That's the point where a managed mobile proxy, one running on real carrier IPs, is worth evaluating instead of continuing to fight blocks in code.

Managed mobile proxies run on real US mobile carrier IPs across multiple US cities, with sticky sessions for tasks that need a stable identity and rotating sessions for high-volume collection, backed by very high uptime. For a C# developer, integration is straightforward: authenticate against the proxy endpoint with your API credentials, then wire that WebProxy into the handler patterns already covered here. If your workflow needs several proxy identities at once, city-targeted scraping running alongside a rotating pool, build one named HttpClient per identity through IHttpClientFactory, exactly as described above, rather than reusing a single handler across profiles. Our notes on session management for stable proxy workflows cover sticky-versus-rotating tradeoffs in more depth if you're deciding which mode fits a given job.

What Actually Matters in Proxy Configuration

Most guides on this topic bury the useful information under generic advice about "using try/catch around your requests." That misses where the real bugs live. The credential placement mistake, handler.Credentials instead of proxy.Credentials, accounts for a disproportionate share of 407 tickets, and it's a one-line fix once you know where to look.

The conventional wisdom to "just reuse HttpClient" is correct but incomplete. Reuse matters more, not less, once a proxy is involved, because every fresh handler means a fresh CONNECT tunnel and a fresh auth negotiation. Skip IHttpClientFactory in a hosted app and you're not just leaking sockets, you're re-authenticating against your proxy provider far more often than necessary, which on a metered plan adds up.

If there's one thing worth prioritizing first: stop treating proxy configuration as a per-request concern. Build your handler once, per proxy identity, get the credential placement right, and let SocketsHttpHandler manage pooling. Everything else in this article, the environment variables, the certificate cautions, is secondary to getting that foundation right.

— Jon

Try Masklabs for Your Next C# Proxy Integration

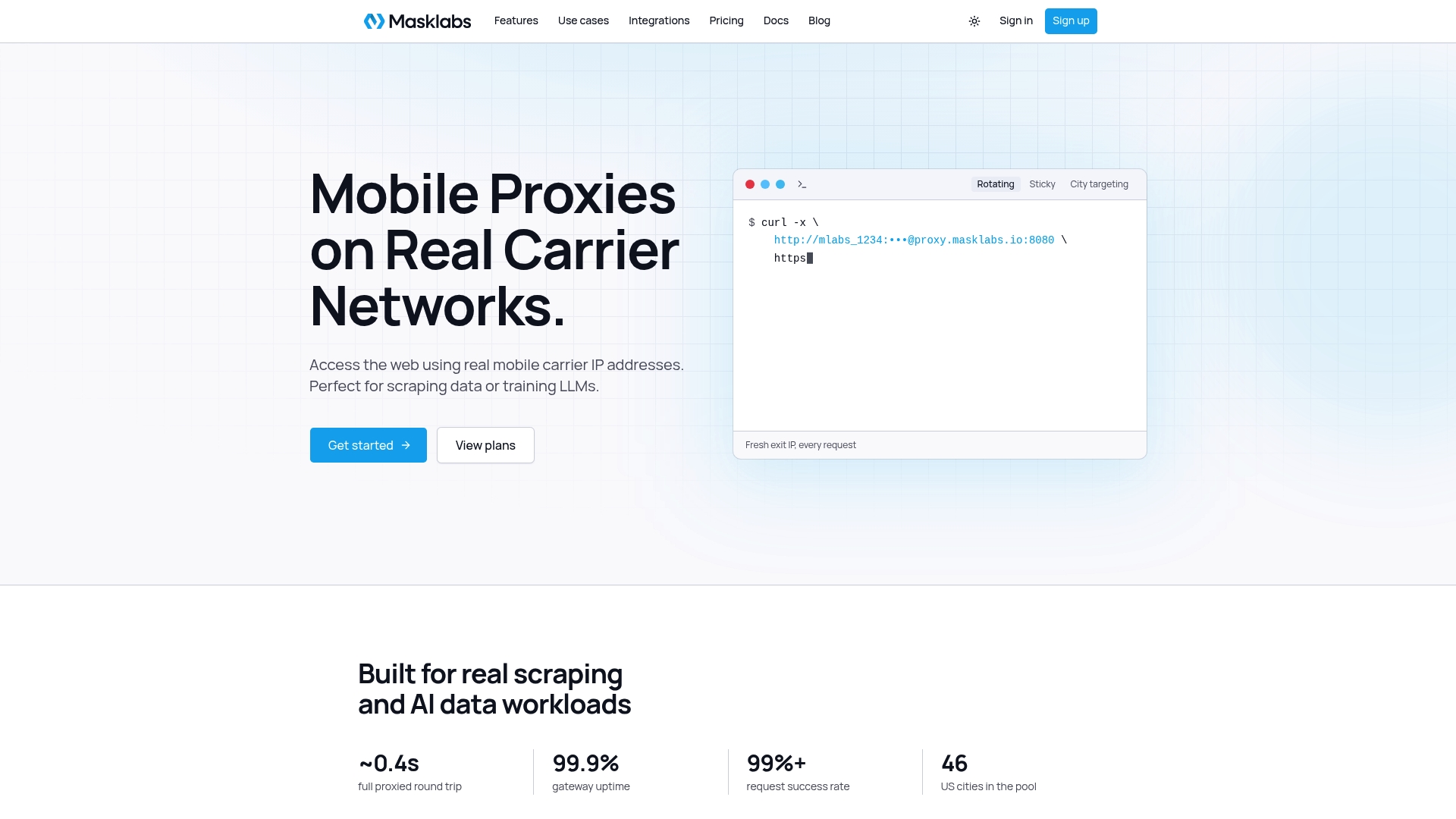

Masklabs is the alternative to fighting IP blocks in code: real US mobile carrier IPs across 46 cities, with sticky or rotating sessions you control per request, so the WebProxy object you build in C# stays stable instead of getting flagged mid-run.

Masklabs

Plans typically offer city-level targeting and API access that plug directly into common SocketsHttpHandler patterns, suitable for tasks like scraping, training models, or running geotargeted price checks. Start with the Starter plan at $30 per month to test the integration, or check the full pricing breakdown across Basic, Advanced, and Scale before committing a production workload. A free trial with limited data is often provided to validate your HttpClient setup against real mobile IPs before paying for service. Head to the Masklabs product page to get your API credentials and start wiring up your first proxied client.

FAQ

Should You Turn a Proxy On or Off in HttpClient?

Keep UseProxy on whenever you've deliberately set a Proxy object. Turn it off only when you're intentionally bypassing system or environment proxy settings for a direct connection, such as internal service calls that should never route externally.

What Is the Standard C# Pattern for Configuring a Proxy?

The standard pattern attaches a WebProxy to HttpClientHandler.Proxy or SocketsHttpHandler.Proxy, sets credentials directly on that WebProxy object via NetworkCredential, and wraps the handler in a reused HttpClient or an IHttpClientFactory-managed client. This is the pattern Microsoft's HttpClient guidance recommends for production code.

What Are the Risks of Using an HTTP Proxy?

The main risks are security shortcuts, like disabling certificate validation to silence a proxy-related TLS error, and reliability issues from misconfigured credentials or stale connections. Using a reputable managed provider and following certificate best practices removes most of that risk.

Should You Reuse HttpClient Instances?

Yes. Creating and disposing a new HttpClient per request wastes sockets and, with a proxy involved, forces a fresh authentication handshake every time. Reuse one instance or use IHttpClientFactory, as Microsoft's guidance recommends.

Why Do I Get a 407 Error Even With Correct Proxy Credentials?

The credentials are almost certainly set in the wrong place, usually on HttpClientHandler.Credentials instead of WebProxy.Credentials. Move them to the proxy object, since WebProxy.Credentials is what actually responds to the proxy's 407 challenge.
